Axial Flow Fans

Adjustable Pitch Axial Range Overview

Custom fans adjustable pitch axial fans are available in direct and belt drive models offering high efficiencies and high static pressures in a space-efficient inline package. The AVA is available in sizes 35 inch through 79 inch with flow rates of 400 CFM to 213,403 CFM and static pressures up to 13 inches. The AVA features cast aluminum airfoil blades that can be pitch adjusted to achieve a broad range of performance.

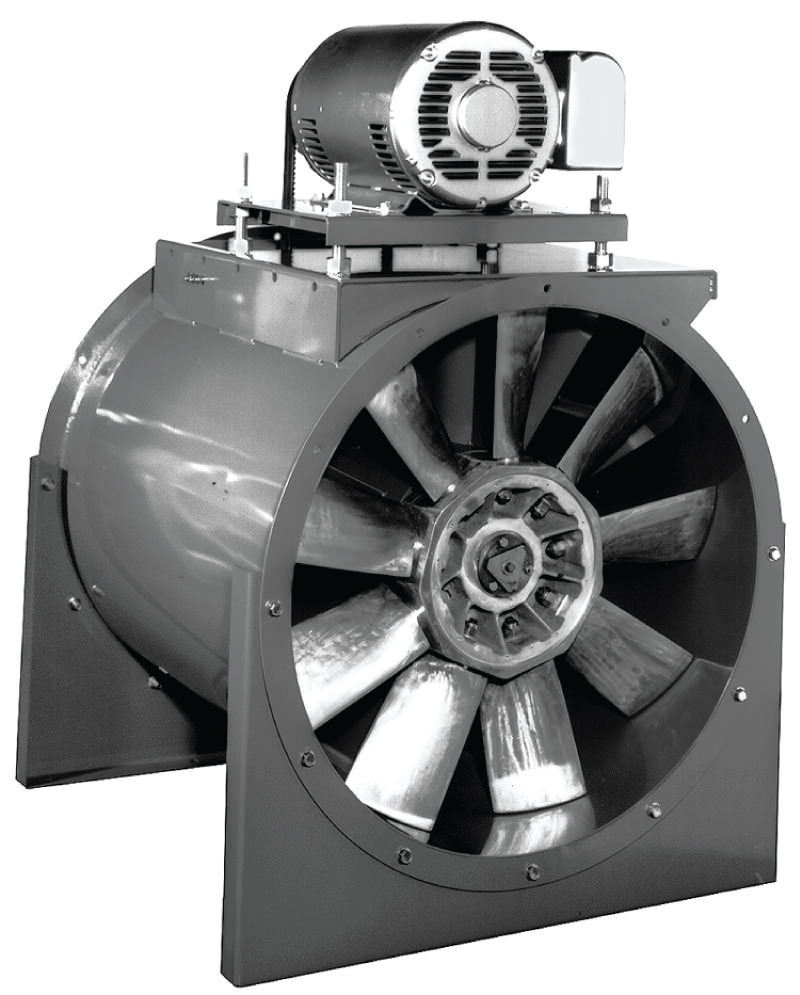

Adjustable Pitch Vane Axial Belt Drive Fan
Adjustable Pitch Vane Axial Direct Drive Axial Fan

Fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. Housing shall be minimum 7 gauge steel with continuously welded seam. Housing shall incorporate minimum 2” x 2” x 1/4” welded inlet and outlet flanges pre-punched for mounting. Housing shall include welded steel discharge vanes surrounding a “C” face mount motor tunnel. Copper lube lines shall be extended from motor bearings to the outside of the housing when applicable. Unit shall bear an engraved aluminum nameplate.

Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA certified ratings seal for air and sound performance.

You can choose from a range of materials which are efficient aerofoil adjustable pitch impellers include pressure die cast aluminum, injection molded glass reinforced polypropylene (GRP) and nylon. Impellers are balanced to ISO1940 Grade G6.3 and all hubs are pressure die cast aluminum alloy

Available in:

Direct drive or Belt drive configurations
Variations in these configurations are available in order to suit exact installation conditions

Axial fans are suitable for large quantities of air at low pressures. They are relatively cheaper than centrifugal fans. They are easily installed in round ducts and has a reduced space requirement, thus lowering the cost of the system. The impeller has adjustable blades which make it possible to adapt the fan to the requirement changes. Impellers can be supplied in polypropylene, aluminium , mild steel or stainless steel. Belt driven axial fans are used in situations where it is important that the motor is kept out of the airstream due to high temperature or the corrosive nature of the gases/fumes involved.

Adjustable Pitch Axial Flow Fans have been tested and certified to meet the requirements of AS4429:1999. The fans comply with requirements of AS/NZS1668.1:1998

Axial Flow impellers shall be driven by motors with sealed for life bearings. Fan cases shall be of heavy gauge steel with roll formed or fully welded flanges. All cases can be hot dipped galvanised to AS1650 specification or enamel or sandblast epoxy finish.

Impeller blades to be aerofoil section manufactured from nylon, GRP or pressure die cost aluminum.

All fans shall be fully tested in accordance with the requirements of BS 848 Pt1 (1998) for air flow and AMCA 300 for sound.

Adjustable Pitch Vane Axial

Custom fans adjustable pitch vane axial fans are available in direct and belt drive models offering high efficiencies and high static pressures in a space-efficient inline package. The AVA is available in sizes 35 inch through 79 inch with flow rates of 400 CFM to 213,403 CFM and static pressures up to 13 inches. The AVA features cast aluminum airfoil blades that can be pitch adjusted to achieve a broad range of performance. The AVA adjustable pitch vane axial fan is available with a full range of accessories allowing it to be adapted to many different applications.

Vane Axial Adjustable Pitch Fans are used in applications where demands vary with system or seasonal change. Blade pitch is manually set to increase or decrease performance. Blades are easily adjustable externally at the hub. Available in compact direct drive models.

Clean Air, Fumes, Steam and Corrosive applications

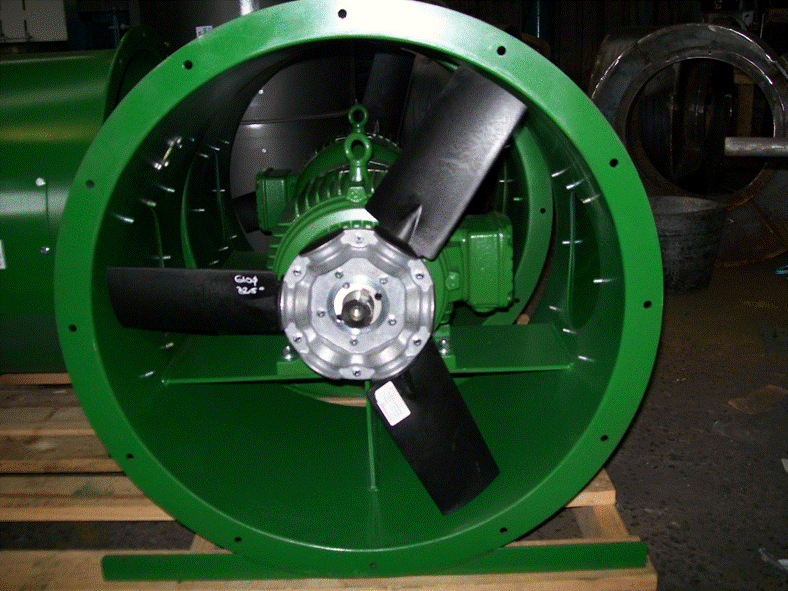

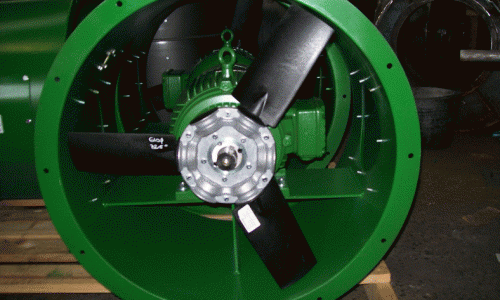

Fan cases are fabricated from heavy gauge sheet steel with roll formed flanges on inlet and outlet. Impeller blades and hubs are of pressure die cast A356-T51 aluminium alloy. Blades are aerofoil design shaped for maximum efficiency and twisted from hub to tip to obtain equal air distribution along the blade.

up to, 50,000L/s

up to, 1.5   kPa

up to, 90o  C

  • Adjustable volume and pressure by manually resetting blade angle
  • Stable air flow over entire performance range
  • Compact direct drive configuration
  • Horizontal or vertical installation
  • High efficiency aerofoil bladed impeller
  • Efficiencies over 80%
  • Rugged industrial strength construction
  • AMCA Certified for air and sound performance

Rated fan performance has been tested in accordance with the requirements of AMCA Standard 210. Rated fan sound performance has been tested in accordance with the requirements of AMCA Standard 300.

Belt Drive Adjustable Pitch Axial Flow

Belt Drive Adjustable Pitch Axial Flow

400 – 2000

2 – 8 / up to 40,000 L/s

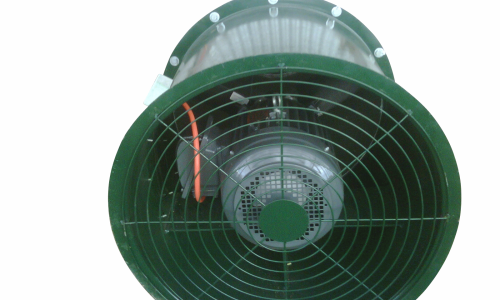

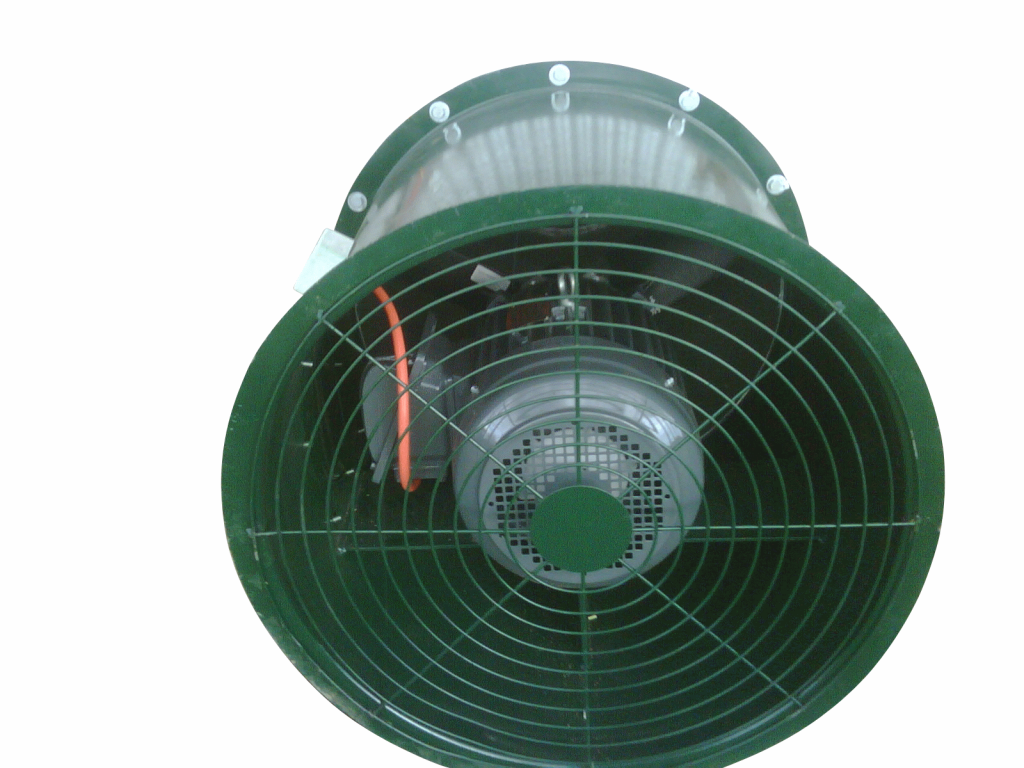

Tube Axial Fans

400 – 2000

Tube Axial Fans

up to, 40,000/s

up to, 1.5 kPa

up to, 85o    C

Highly Corrosive applications. From steel mills to chemical processing to emissions control, industrial air moving and exhausting systems must withstand a growing variety of severe corrosives. Fiberglass Reinforced Plastic (FRP) fans are built to handle these harsh fumes, vapours, and gases. This fiberglass polyester composition is also impervious to extreme outside environments. Exterior steel components are protected by a special vinyl phenolic coating.

Versatile FRP tube axial flow fans are offered in belt or direct drive with sizes to fit all commonly used duct diameters. While belt driven, arrangement 9, is considered standard, direct drive, arrangement 4, is available on most sizes to better suit the specific installation. In addition to a multitude of standard models, Custom Fans can be fabricated to meet unique requirements, including alternate plastic resin formulations and exotic metal high-pressure impellers.

Fan cases are fabricated from heavy gauge sheet steel with roll formed flanges on inlet and outlet. Impeller blades and hubs are of pressure die cast A356-T51 aluminium alloy. Blades are aerofoil design shaped for maximum efficiency and twisted from hub to tip to obtain equal air distribution along the blade.

  • Axial fans offer direct drive and belt drive
  • Smooth FRP resin reduces friction and minimizes solids build-up
  • Fibreglass polyester composition impervious to extreme outside environments

Rated fan performance has been tested in accordance with the requirements of AMCA Standard 210. Rated fan sound performance has been tested in accordance with the requirements of AMCA Standard 300.
